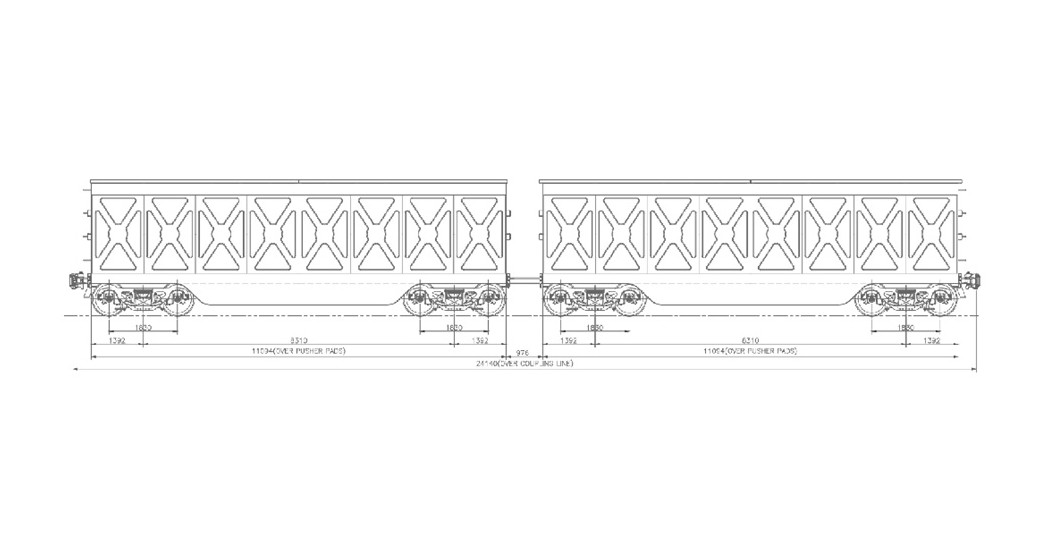

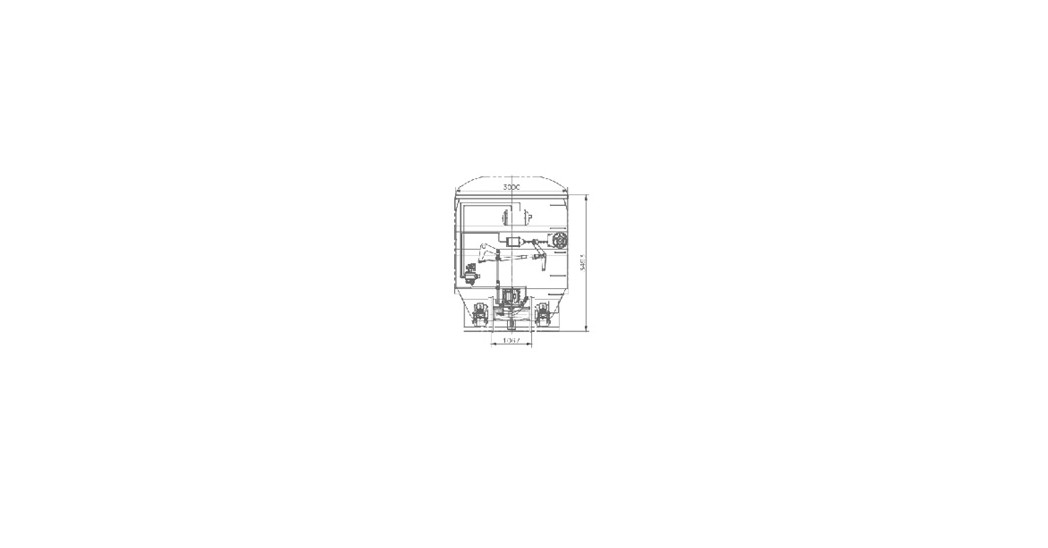

CCL-7 Type Coal Wagon

Type	Specification	Type	Specification
Tare(Average)	20.2 ton	Bogie Type	Self Steering Bogie
Loadage	84 ton	Brake Percentage(EMPTY)	68.5%(AIR)
Production Capacity	85.66m^3	Brake Percentage(LOADED)	13.3%(AIR)
Maximum Load Capacity	76.2m^3	Drag Gear Device	AARM 901E
Molten Metal Capacity	9.46m^3	Brake Ratio	4.5:1
Bearing Size	"F" CLASS	Bogie	￠915
Spring per Bogie	12/8	Train Pipe	￠32mm
Brake	AIR / Slack Adjuster	Connector / Yoke	F/F TYPE
Brake Cylinder	2/7X12	ORIGINALLY DESIGNED FOR	COAL
